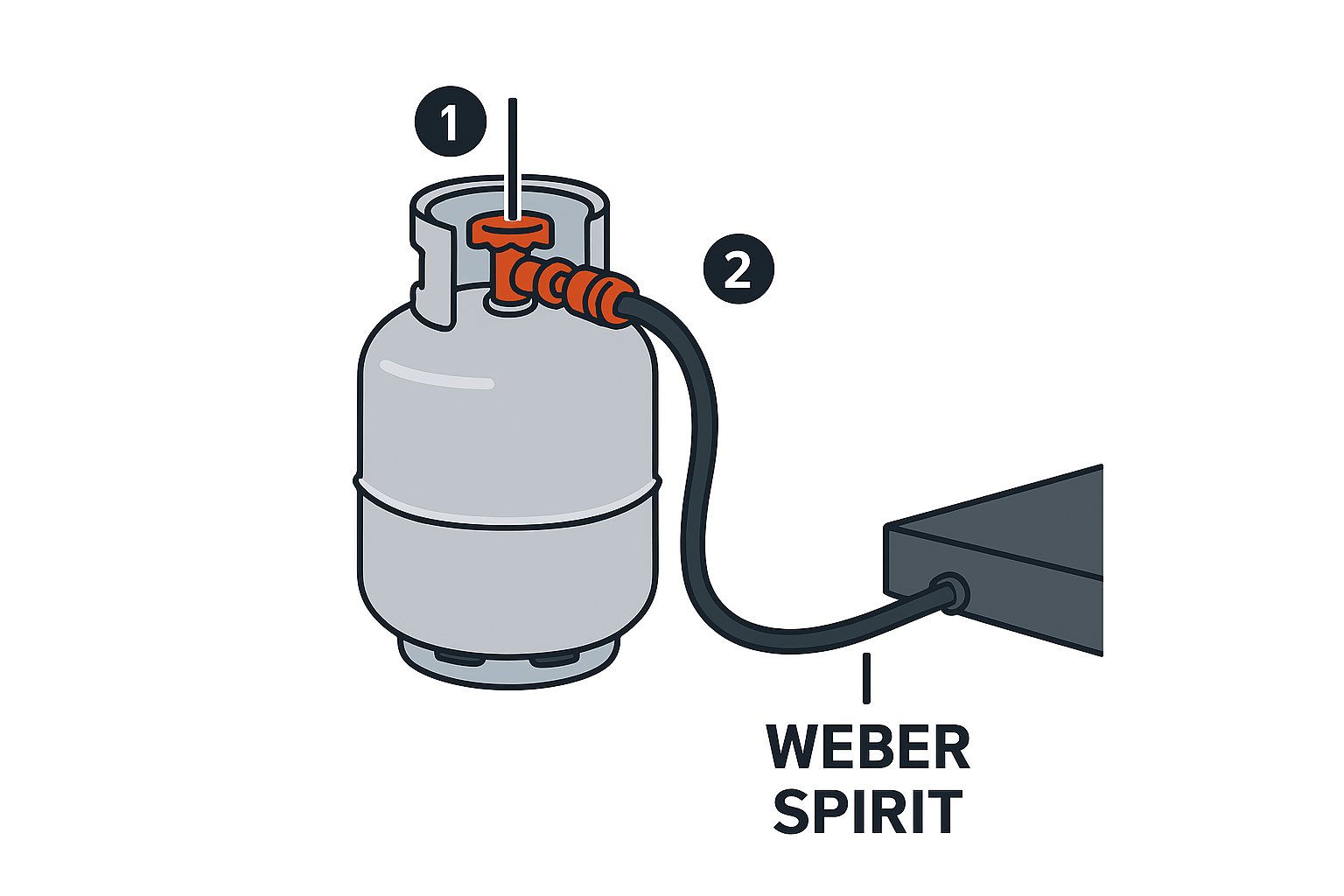

(1) = Gas bottle valve (the round knob on top of the bottle)
(2) = Regulator (the small device connecting the hose to the bottle)
Weber Spirit = Your grill
These parts work together to control the flow of gas from the LPG cylinder to your Weber Spirit grill. Understanding what the gas bottle valve (1) and regulator (2) do makes it easier to connect, disconnect, and safely operate your barbecue.
This simple guide explains when and how to disconnect the regulator from your LPG cylinder, how to replace a gas bottle safely, and what to do if you suspect a gas leak.
After Use
When you have finished cooking:
- Turn off the gas at the LPG cylinder valve (1) by turning it clockwise until it stops.
- If you plan to store the grill indoors, disconnect the regulator (2) from the LPG cylinder once the gas is turned off. The LPG cylinder must always remain outdoors.
When Replacing the LPG Cylinder
If your gas cylinder is empty and needs replacing:
- Make sure the LPG cylinder valve (1) is fully closed.
- Disconnect the regulator (2) by turning the connector in the direction shown on your cylinder.
- Remove the empty cylinder and connect the regulator (2) to the new cylinder, following the same steps in reverse.
If You Suspect a Gas Leak
Common signs include a gas smell, a hissing noise, or bubbles during a leak check.
- Turn the LPG cylinder valve (1) off immediately.
- Disconnect the regulator (2) only once the gas is off.
- Do not try to repair the issue yourself. Contact your gas supplier or local emergency services.
Safety Tips
- Always close the LPG cylinder valve (1) before disconnecting the regulator (2).
- Never disconnect the regulator (2) while the grill is in use.
- Be cautious when handling the cylinder and regulator near hot areas of the grill. Use heat resistant gloves if needed.
